The SMART TRAY© - Detailed Drawings
Types of Tray
The SMART TRAY© is manufactured from BBA Approved Plastisol (plastic coated, Zinc Plated Steel). Copyright © Patent No GB 2371568
SMART TRAY© Sections
Copyright © Patent No GB 2371568

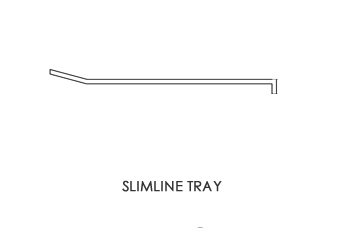

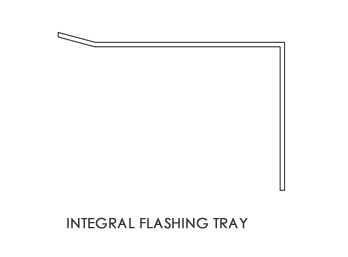

SMART TRAY© Sections

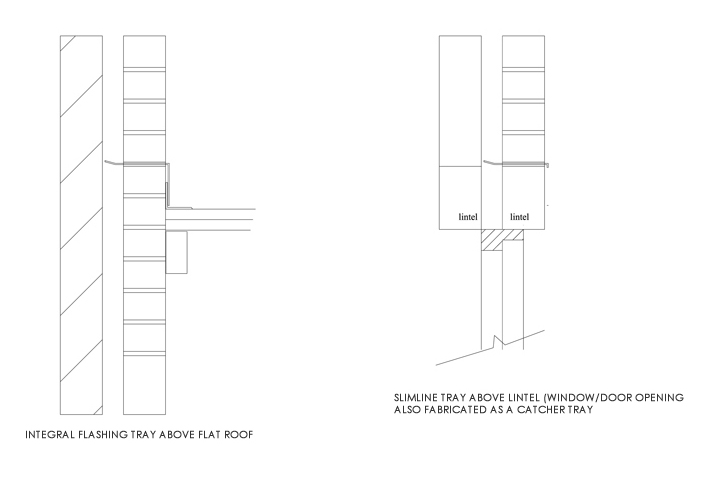

Typical bed joint installation employing Integral Flashing Trays over a lean to Roof. Copyright © Patent No GB 2371568
SMART TRAY© Sections

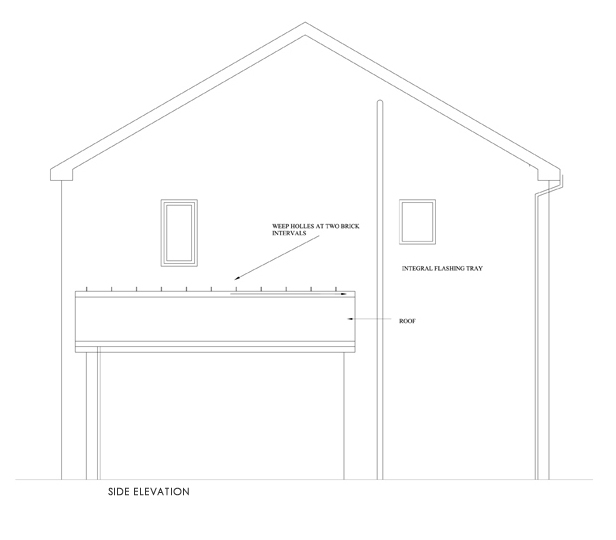

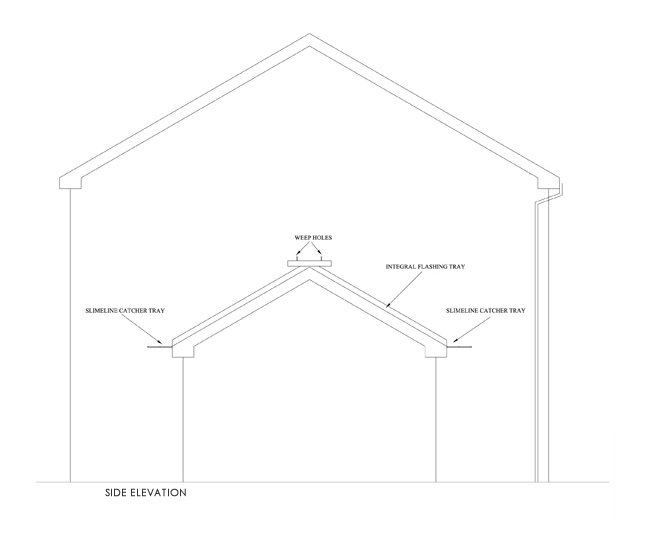

Typical roof plane installation employing Integral Flashing Trays with slimline catcher trays at tray run ends allowing the collected ingressed water out of the wall. Copyright © Patent No GB 2371568

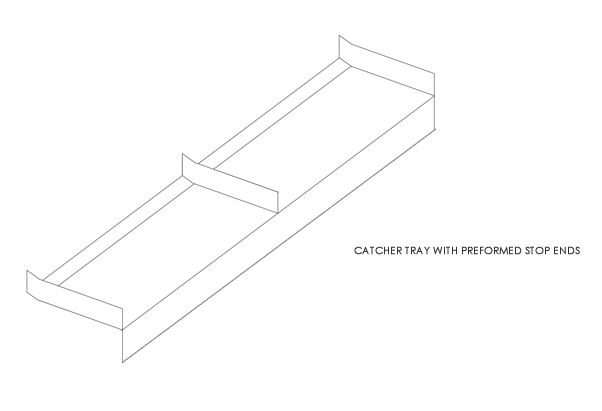

Catcher Tray
Once the SMART TRAY© is installed into the wall, it is then wedged tight with approved packers, the remaining gap (aprox 3mm) is then grouted with a sand/cement mortar aprox 3:1 mix with an integral PVA additive. Dependant on the surrounding wall colour a Low modulus silicone sealant can then be applied on to the tray edge if required. Weep vents are fitted at two brick intervals on bed joint installations, and central on catcher trays where a roof plane installation has been employed. The final finish is then one of a more aesthetic built in appearance. Copyright © Patent No GB 2371568
