INTEGRAL 'SMART FLASHING TRAY'

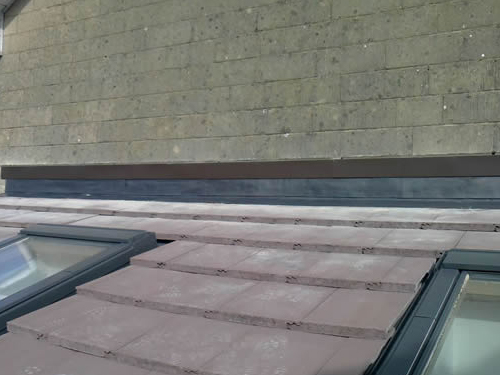

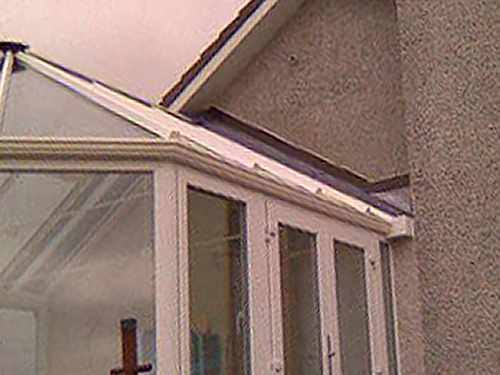

Integral 'Smart Flashing Tray' - Installed over a Conservatory Roof for 'Everest' windows, location - Isle of Benbecula (Outer Hebrides) Scotland.

SLIMLINE 'SMART TRAY'

Slimline 'Smart Tray' Installed directly over the lead soakers, then neatly concealed with stepped lead flashings - Located in Southern Kent.

INTEGRAL FLASHING 'SMART TRAY'

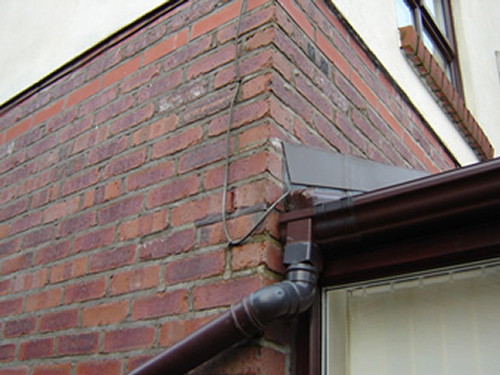

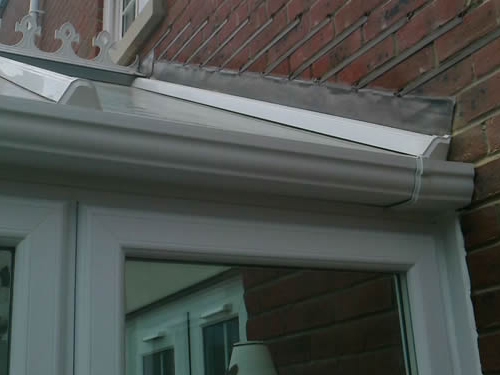

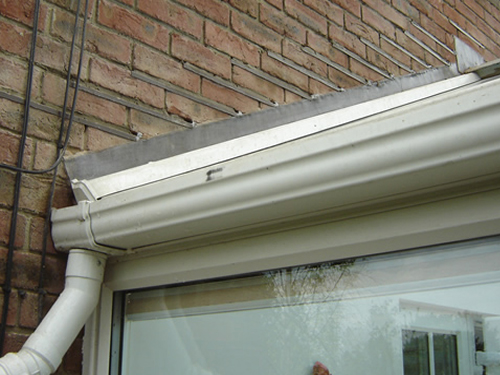

Integral Flashing 'Smart Tray' - Installed over a conservatory in Bolton, Lancashire. The catcher tray can be seen on the gable corner with the weep vent in place.

INTEGRAL FLASHING 'SMART TRAY'

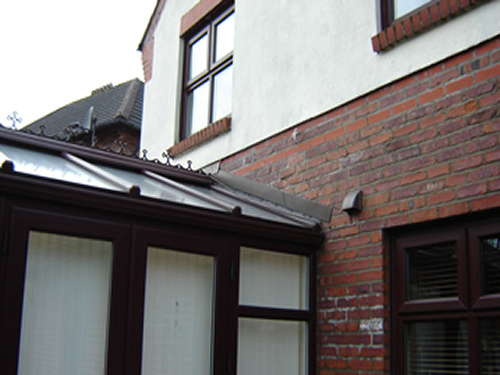

Integral Flashing 'Smart Tray' - Installed over a conservatory in Bolton, Lancashire. From the other side (please see pic 3 also) you can see how the SMART TRAY© has saved damaging the existing feature brickwork and render on the property. Traditional cavity trays would have been intrusive and cosmetically damaging to the property.

INTEGRAL FLASHING TRAY

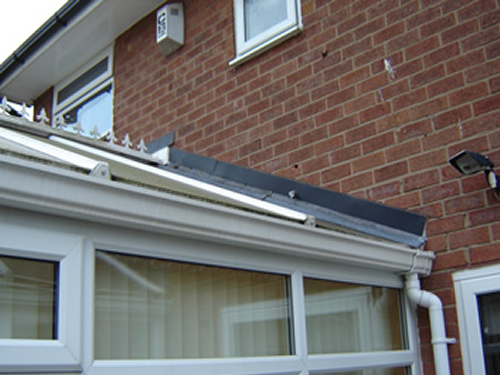

An Integral Flashing Tray - Over a large conservatory in Lancashire - (Approx 5m length)

INTEGRAL FLASHING TRAY

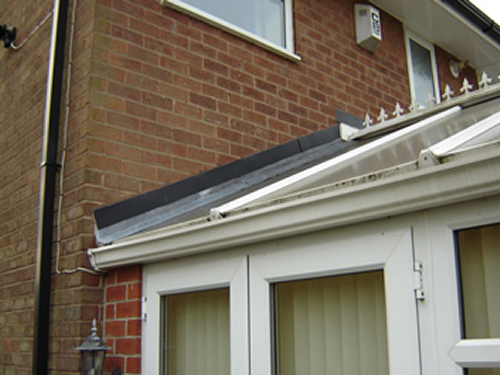

An Integral Flashing Tray - Over a large conservatory in Lancashire - (Approx 5m length) -Same Conservatory as in Second Row Pictture 2. Opposite side, now fully dry and usable after SMART TRAY© installation. The lead flashing employed by the installers was inadequate making the conservatory damp when the weather was on the wall.

INTEGRAL FLASHING TRAY

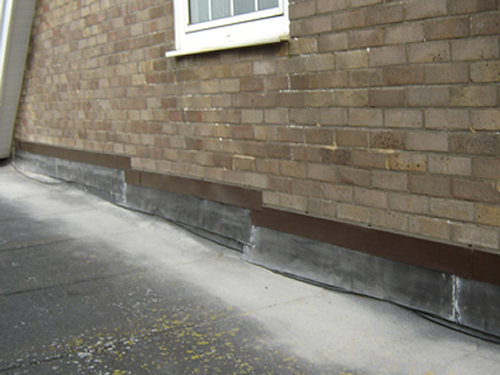

An Integral Flashing Tray - Installed in the Bed Joint over a projecting Flat Roof. Garstang Area.

INTEGRAL FLASHING 'SMART TRAY'

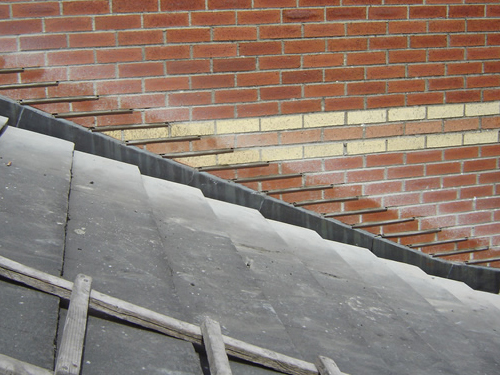

This picture shows the integral flashing SMART TRAY© fitted in a Traditional stepped sequence. Due to the lengh of trays required we opted for this type of bed joint installation to ensure stability of the outer leaf of brickwork. Shorter runs which dont undermine the main strengh of the outer leaf are usualy fitted in line with the roof pitch. This type of installation can be seen at the bottom of the picture were we previously fitted over Mr Platts conservatory in Oldham , Lancashire.

INTEGRAL FLASHING 'SMART TRAY'

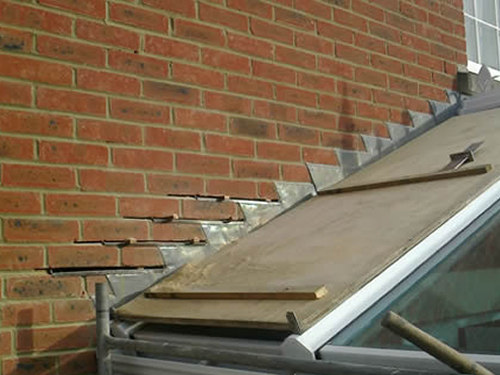

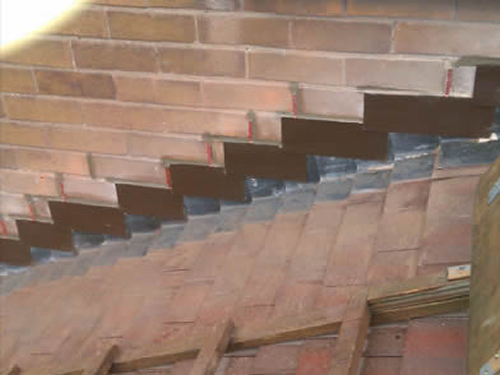

This picture shows the integral flashing SMART TRAY© installed in a traditional stepped sequence above the Lead soakers. Weep vents are fitted on each tray, along with preformed stop ends prior to fitting.Property in Prestwich, Manchester.

SLIMLINE 'SMART TRAY'

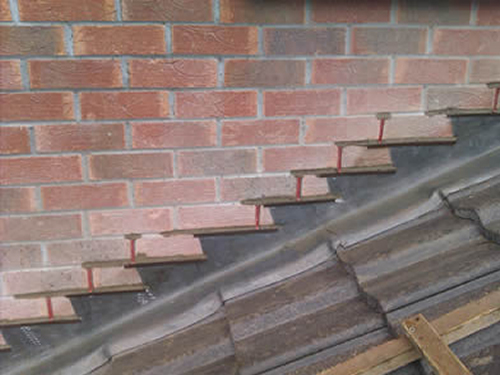

This picture shows the Slimline SMART TRAY© installed directly over the existing Lead flashings in a stepped sequence, preformed stop ends are fabricated on the trays prior to fitting. Property in Salford, Manchester

'SMART TRAY' WITH INTEGRAL FLASHING

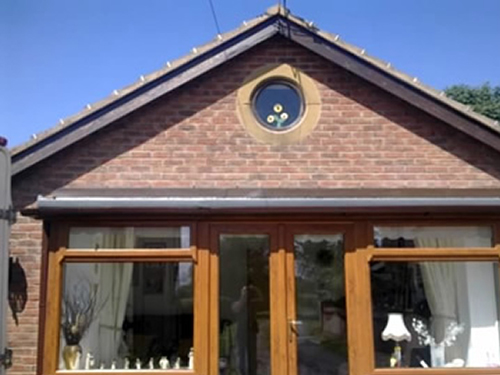

Here is a SMART TRAY© with integral flashing after being installed over the roof elevations of a conservatory at a private property in Hightown on the North West Coast of England. As this region of England suffers from inclement weather conditions, the SMART TRAY© was installed to provide a neat and permanent seal.

INTEGRAL FLASHING 'SMART TRAY'

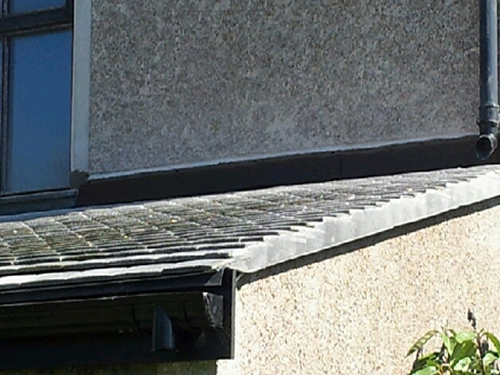

Integral Flashing SMART TRAY© installed into Pebbledashed Wall - Penzance, Cornwall.

INTEGRAL FLASHING 'SMART TRAY'

This picture shows an integral flashing SMART TRAY© we installed over a single storey extension in the Cardiff Area

SLIMLINE 'SMART TRAY'

Shows a slimline SMART TRAY© system installed in a stepped sequence over a conservatory in Barton on Sea near Bouremouth

STEPPED SLIMLINE 'SMART TRAY'

This picture shows a Stepped Slimline SMART TRAY© in the process of installation, over a conservatory glass roof. Barton on Sea near Bournemouth

INTEGRAL FLASHING 'SMART TRAY'

STEPPED SLIMLINE 'SMART TRAY'

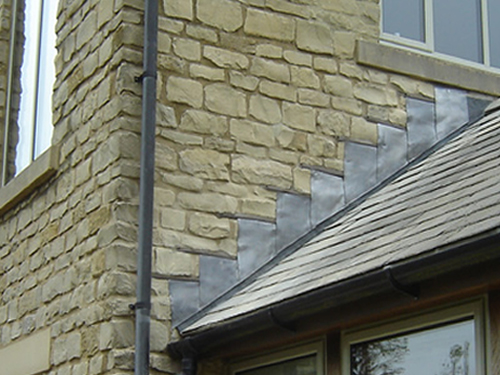

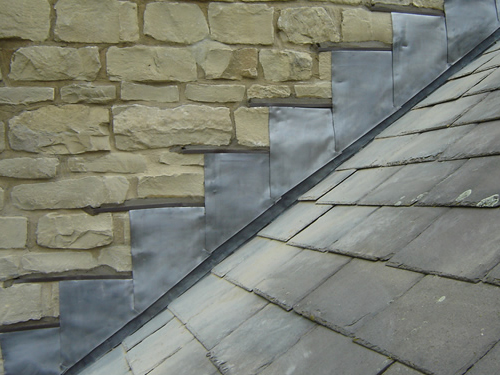

This picture shows a close up of an installation we did at a private farmhouse. We fitted a Stepped Slimline SMART TRAY© system with new stepped lead flashing in Code 4 lead wiped with Patination Oil on completion - Banbury Area.

STEPPED SLIMLINE 'SMART TRAY'

Another view of installation at the Banbury Farmhouse Job - Banbury Area

STEPPED SLIMLINE 'SMART TRAY'

Here is another Stepped Slimline SMART TRAY© system installed over a single storey roof - Cumbernauld near Glasgow - Scotland

STEPPED SLIMLINE 'SMART TRAY'

This picture shows a conservatory in Stockton-on-Tees where we installed the proven Stepped Slimline SMART TRAY© to leave a neat unobtrusive finish.
